KFC-XW1221HP

KFC-XW1221HP12" Subwoofer (2Ω)

  • ・Peak Power 2000W
  • ・PP Dual Area Cone
  • ・Closed Yoke with Advanced Airflow Control
  • ・Stress Controlled Spider
  • ・Robust Thermal Management System

Buy Now

PP Dual Area Cone

This gives its diaphragm the rigidity required for higher power handling and delivers more accurate bass.

Closed Yoke with Advanced Airflow Control

The KFC-XW1221HP has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

Stress Controlled Spider

Computer-optimized damper controls stress and increases mechanical durability.

The Best Match

KFC-XR1221HP "High Performance" Class Subwoofer is precisely power matched with the eXcelon X502-1 amplifier.

Optional CA-121G Subwoofer Grille Ready

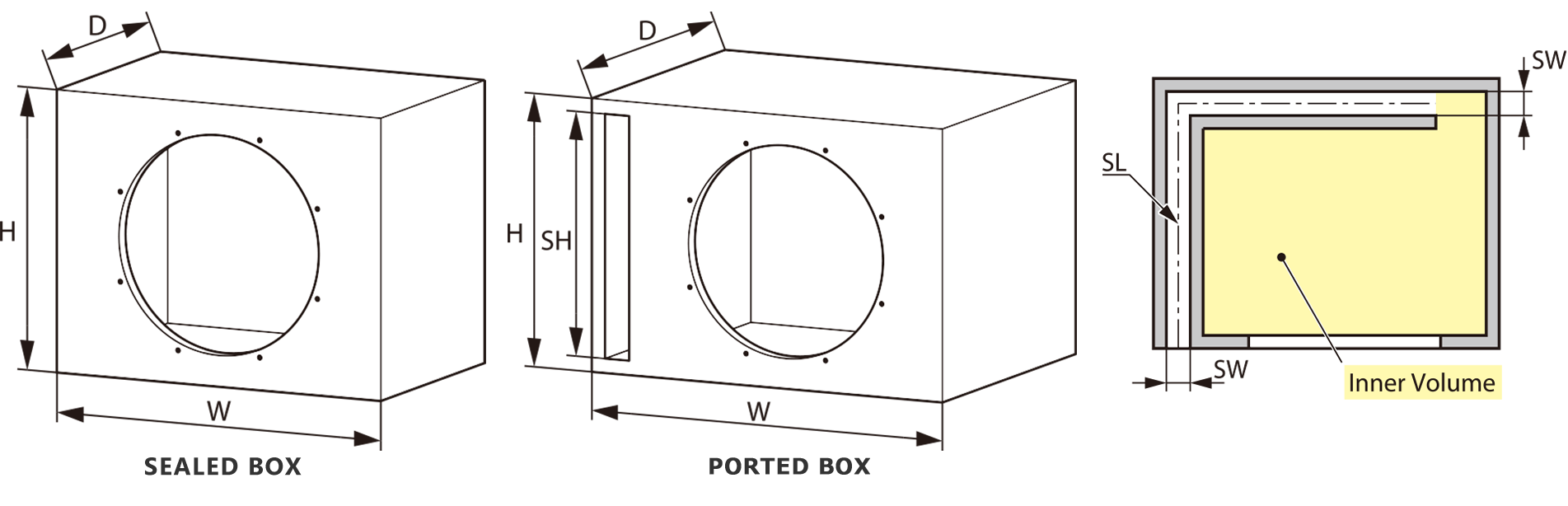

Recommended Enclosures

« scroll
Model Type Inner Volume W H D Mounting Hole SW SH SL
KFC-XW1221HP Sealed 1.25 cft (35.4 liter) 18" (457mm) 14-1/4" (362mm) 11-3/4" (299mm) 11-1/8" (282mm)
Ported 1.50 cft (42.5 liter) 20" (508mm) 14-1/4" (362mm) 15-1/2" (394mm) 1-3/8" (35mm) 12-3/4" (324mm) 29" (736mm)

General Features

ELECTRICAL
Impedance (Ω) 2
Peak Input Power (W) 2000
RMS Power (W) 500
Sensitivity (dB at 1m) 81
Frequency Response (Hz) 25 ~ 300
MOUNTED SPEAKER
Size 300mm 12 inch
Diaphragm Paper
Cap Injection PP
Surround Rubber
Basket Steel
Gasket ABS
Magnet Ferrite φ155-φ75-t32
DIMENSION
Width 326mm 12 - 13/16 inch
Height 326mm 12 - 13/16 inch
Cut-out Diameter 279mm 11 inch
Depth 165.8mm 6 - 1/2 inch
Mounting Depth 147mm 5 - 13/16 inch
WEIGHT
Woofer without Gasket 6.4 kg 14.1 lb
Gross Weight 7.4 kg 16.3 lb
Weight of Magnet 2340 g 82.4 oz
ACCESSORY Tapping Screw Φ4 x 35, 8pcs
Polyethylene Foam 1000 x 13 mm
Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP Dual Area Cone
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
« scroll
ELECTRICAL
Impedance (Ω) 2
Peak Input Power (W) 2000
RMS Power (W) 500
Sensitivity (dB at 1m) 81
Frequency Response (Hz) 25 ~ 300
MOUNTED SPEAKER
Size 300mm 12 inch
Diaphragm Paper
Cap Injection PP
Surround Rubber
Basket Steel
Gasket ABS
Magnet Ferrite φ155-φ75-t32
DIMENSION
Width 326mm 12 - 13/16 inch
Height 326mm 12 - 13/16 inch
Cut-out Diameter 279mm 11 inch
Depth 165.8mm 6 - 1/2 inch
Mounting Depth 147mm 5 - 13/16 inch
WEIGHT
Woofer without Gasket 6.4 kg 14.1 lb
Gross Weight 7.4 kg 16.3 lb
Weight of Magnet 2340 g 82.4 oz
ACCESSORY Tapping Screw Φ4 x 35, 8pcs
Polyethylene Foam 1000 x 13 mm
Instruction Manual
Warranty Card
SPECIAL FEATURE Injection PP Dual Area Cone
Closed Yoke with Advanced
Airflow Control
Aluminum Bobbin
